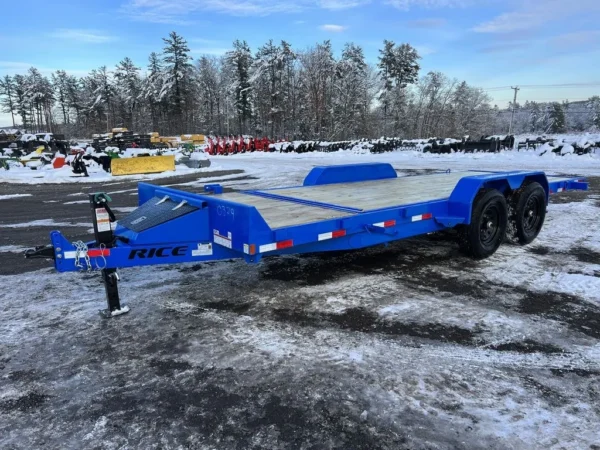

2024 Rice 7ft x 20ft Partial Tilt Deck Plant Trailer – 6.4t with Spare Mount

A partial tilt is a sensible compromise. The front of the deck stays fixed so you keep a stable platform and storage in the neck, while the rear section tilts to ground level for loading. No ramps to lift, no ramps to lose, and a much gentler approach angle than a fixed deck with fold-up ramps.

This Rice PTH20 adds a reverse dovetail and a front bump rail, with a cam lock system securing the deck once it returns level.

Specification

• Deck 7 ft x 20 ft (2.13 m x 6.1 m)

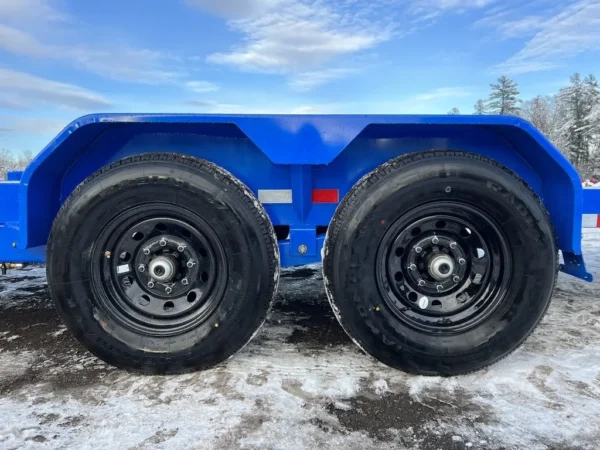

• 2 x 7,000 lb cambered EZ lube electric braked axles
• 152 mm channel tongue, main frame and tilt deck
• 76 mm formed channel crossmembers
• 2-5/16 in adjustable coupler rated 14,000 lb, 10,000 lb jack
• Integrated storage box, fabricated hard guards
• Sealed modular wiring harness, LED lights, emergency breakaway kit
• Three-inch D-rings and a flatbed spare mount fitted

Ratings

Gross 14,000 lb (about 6,350 kg), tare 3,680 lb (about 1,669 kg), rated payload 10,320 lb (about 4,681 kg). Blue, new, 2024.

Using a tilt safely

Load slowly and centre the machine ahead of the pivot so the deck returns level before you strap. A load parked behind the pivot holds the deck up and makes the whole trailer unstable.

Australian registration

Ratings shown are the US manufacturer’s, converted, and are not ADR ratings, an ATM plate or a roadworthiness statement. Imported trailers must be approved and registered through your state or territory road authority. More decks are under container chassis and trailers; covered options under enclosed trailers.
