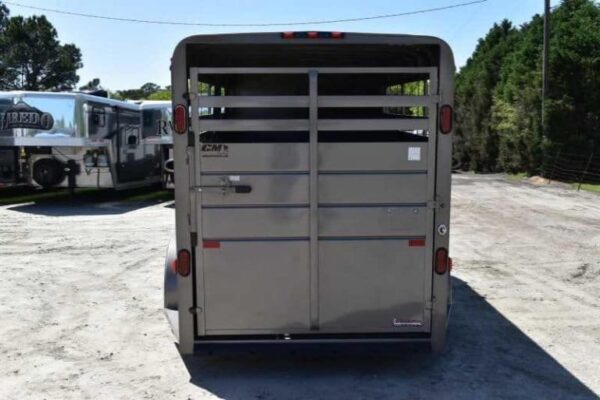

2017 CM 3HSLBP 3 Horse Angle Load Float

Galvanneal is the interesting word in this specification. It is steel that has been galvanised and then annealed, giving a surface that takes paint far better than plain galvanising and resists corrosion far better than plain steel. On a 1.83 m wide three horse float that will live outside, it is a sensible choice.

A 5.18 m box on 1,590 kg axles, at approximately 1,590 kg unladen.

Galvanneal versus plain steel

Plain steel floats rust from any paint chip. Galvanneal has a zinc-iron alloy layer bonded into the surface, so a scratch does not become a rust site the way it does on painted mild steel. It is not aluminium, and it still needs washing and inspection, but it is a meaningful step up in longevity for a steel-bodied float.

Converted specification

• Model: 2017 CM 3HSLBP, three horse, angle load, tag (ball hitch)
• Construction: galvanneal
• Dressing room: 0.61 m short wall, 1.52 m long wall
• Outside width: 1.83 m
• Inside height: 2.13 m (21 hands)
• Box length: 5.18 m
• Empty weight: approx. 1,590 kg
• US-rated gross weight (GVWR): 3,180 kg
• Axles: 1,590 kg
• Wheels: 15-inch, with spare
• Jack: manual

Check the weight math on this one

The manufacturer’s gross rating of 3,180 kg against a tare of approximately 1,590 kg leaves roughly 1,590 kg for horses and gear. Three horses can easily exceed that. This is exactly the kind of figure that matters, and exactly the kind of figure that an Australian compliance assessment would scrutinise — do not assume you can load three full-size horses into it.

Imported US-market unit. The weight figures quoted are the US manufacturer’s and are not Australian ATM, GTM or GVM ratings. This float has not been assessed against Australian Design Rules, state registration or roadworthy requirements, or any Australian livestock transport welfare code, and no such compliance is claimed. Ask us to confirm any figure before you order — contact us.
